Azure Synapse - Load data - Native Load Control

Before loading the data from your Source(s) System(s) to Azure Synapse, please:

You are now ready to load the data.

There is one possibility to load the data natively with Azure Synapse:

We will explain how to load the data using the possible target environment: Azure Synapse.

To load the data:

Open Azure Synapse Analytics with the Workspace web URL provided in the Azure Synapse Workspace resource:
Azure Synapse Analytics is opened:
Click on the Develop menu on the left-hand side:
Open the 500_Deploy_and_Load_Synapse.ipynb file, which contains four steps:
1. %run XXX_Deployment: Deploy the code
2. %run XXX_Deployment_LoadControl.ipynb: Deploy the load control
3. %run XXX_MultithreadingLoadExecution: Load the data in parallel with a multi-thread approach
4. %run XXX_SelectResults: Display the results
Select the Apache Spark Pool (bgaasspark33v2 in our example).
Execute steps 3 then step 4
The data were loaded:

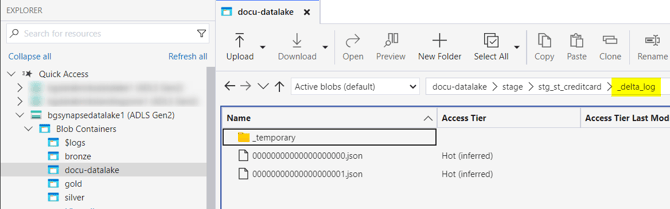

- You should have the target Parquet files created for each Target Model Object, for example, for the Stage CreditCard:

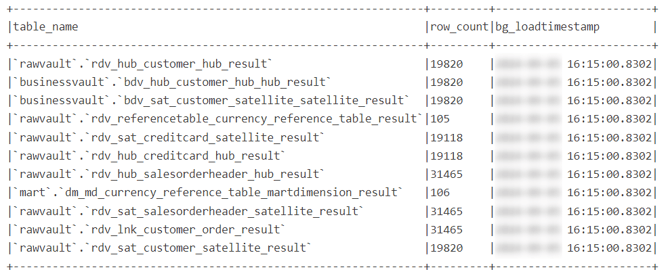

- Step 3 displayed a resume of the number of rows loaded for each Target Model Object, for example:

You can now check that your data was correctly loaded with the following script:

--Create a new step with the following code:
mydf = spark.sql("select * from `rawvault`.`rdv_hub_creditcard_hub`")
mydf.show(truncate = False)

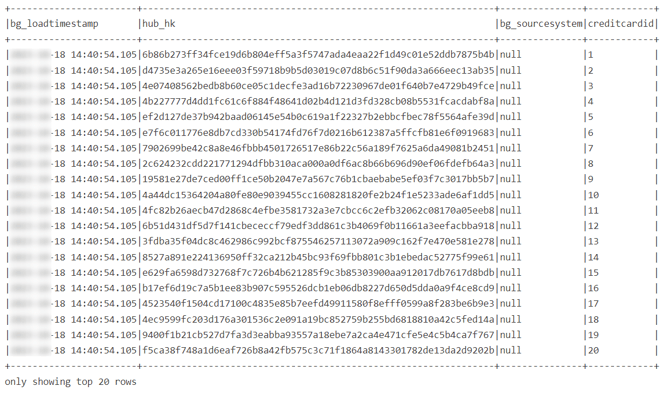

And see the content of your Target Parquet file:

Azure Synapse - Load data - Native Load Control - 1.9
