# Use parent-child relationships

biGENIUS-X allows the creation of complex parent-child relationships for all modeling approaches.

In this article, we describe a use case based on the Microsoft SQL Server AdventureWorks sample database for each modeling approach.

### Parent-child relationship use case

In the Adventure Works example database, the table *HumanRessource.Employee* contains the employee hierarchy in the *OrganizationNode* field.

Let's explore our source data:

```
SELECT TOP (7) [BusinessEntityID]      ,[OrganizationNode]      , CAST([OrganizationNode] as VARCHAR(4000)) as DecryptedNode      ,[OrganizationLevel]      ,[JobTitle]  FROM [AdventureWorks2019].[HumanResources].[Employee]
```

![](https://knowledge.bigenius-x.com/hs-fs/hubfs/image-png-Oct-07-2025-01-34-46-9929-PM.png?width=670&height=159&name=image-png-Oct-07-2025-01-34-46-9929-PM.png)

The *OrganizationNode* field is of type *hierarchyid*.

- Example: 0x5ADE

To understand it, we cast it in *VARCHAR(4000)*.

- Example: /1/1/3/

The hierarchy in this example is the following:

![](https://knowledge.bigenius-x.com/hs-fs/hubfs/image-png-Oct-07-2025-01-40-02-5569-PM.png?width=418&height=186&name=image-png-Oct-07-2025-01-40-02-5569-PM.png)

To construct it from the *OrganizationNode* field value, let's take an example:

- Node = /1/1/3/. 2 parts:
    - /1/1/ = Node of the manager (*3- Engineering Manager* here)
    - /3/ = counter of the employee (third employee of the manager)

The purpose of building a parent-child relationship is to have a flattened view of the employee-manager relation:

![](https://knowledge.bigenius-x.com/hs-fs/hubfs/image-png-Jan-08-2026-09-41-01-4884-AM.png?width=670&height=114&name=image-png-Jan-08-2026-09-41-01-4884-AM.png)

### Data Vault implementation

To implement the parent-child relationship with a Data Vault modeling, we need four Model Objects:

- An Employee **Stage**
- An Employee **Hub**
- An Employee **Satellite** to store employee last name, first name, ...
- A **Hierarchical Link**, which represents the parent-child relationship

#### Stage

Create an Employee **[Stage](https://knowledge.bigenius-x.com/create-a-stage?hsLang=en)**with the wizard from the Employee source.

#### Hub

Create an Employee **[Hub](https://knowledge.bigenius-x.com/create-a-hub?hsLang=en)** with the wizard from the Employee Stage:

- Business Key = BusinessEntityID

#### Satellite

Create an Employee **[Satellite](https://knowledge.bigenius-x.com/create-a-satellite?hsLang=en)** with the wizard from the Employee Stage:

- Relationship to Employee Hub
- Map the Foreign Key with the term BusinessEntityID
- Select the attributes :
    - FirstName
    - LastName
    - JobTitle

#### Hierarchical Link

Create an Employee\_Hierarchy [Hierarchical Link](https://knowledge.bigenius-x.com/create-a-hierachical-link?hsLang=en) with the wizard from the Employee Stage:

- Relationship to Employee Hub - Set the Relationship No to 2
- Rename the Relationship 2 Role to Manager
- Map the Employee Key with the term BusinessEntityID

Then manually:

- Rename the Alias of the Employee Stage to emp (for Employee)
- Add a second time the Employee Stage as Source:

    - Alias = man (for Manager)
    - Join Operator = Left Outer Join
    - Join Expression =

```
CASE     WHEN emp.OrganizationLevel IS NULL THEN NULL    WHEN emp.OrganizationLevel = 1 THEN '0'    ELSE CONCAT(LEFT(CAST(CAST(emp.OrganizationNode AS hierarchyid) as nvarchar(4000)),         LEN(CAST(CAST(emp.OrganizationNode AS hierarchyid) as nvarchar(4000))) - CHARINDEX('/',         REVERSE(CAST(CAST(emp.OrganizationNode AS hierarchyid) as nvarchar(4000))), 2)),'/')     END   = ISNULL(CAST(CAST(man.OrganizationNode AS hierarchyid) as nvarchar(4000)),'0')
```

#### Use case view

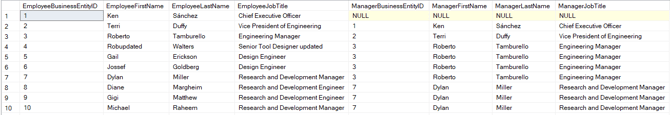

After generating, replacing the placeholders, deploying, and loading the data, the following statement can be executed to have the flattened view of the employee-manager relation:

```
SELECT hubEmp.BusinessEntityID as EmployeeBusinessEntityID,satemp.FirstName as EmployeeFirstName,satEmp.LastName as EmployeeLastName,satEmp.JobTitle as EmployeeJobTitle,hubMan.BusinessEntityID as ManagerBusinessEntityID,satMan.FirstName as ManagerFirstName,satMan.LastName as ManagerLastName,satMan.JobTitle as ManagerJobTitleFROM [RDV].[RDV_HUB_Employee] hubEmpLEFT JOIN [RDV].[RDV_SAT_Employee] satEmp ON hubEmp.Hub_HK = satEmp.Hub_HKLEFT JOIN [RDV].[RDV_HLNK_Employee_Hierarchy] link ON link.Employee_Employee_HK = hubEmp.Hub_HKLEFT JOIN [RDV].[RDV_HUB_Employee] hubMan ON link.Employee_Manager_HK = hubMan.Hub_HKLEFT JOIN [RDV].[RDV_SAT_Employee] satMan ON hubMan.Hub_HK = satMan.Hub_HKWHERE hubEmp.BusinessEntityID <> 0 --singletonORDER BY hubEmp.BusinessEntityID
```

![](https://knowledge.bigenius-x.com/hs-fs/hubfs/image-png-Jan-08-2026-09-44-04-7879-AM.png?width=670&height=115&name=image-png-Jan-08-2026-09-44-04-7879-AM.png)

### Dimensional implementation

The dimensional implementation supports complex hierarchies, including mixed SCD configurations.

To implement the parent-child relationship with a Dimensional modeling, we need two Model Objects:

- An Employee **Stage**
- An Employee **Entity**

#### Stage

Create an Employee **[Stage](https://knowledge.bigenius-x.com/create-a-stage?hsLang=en)**with the wizard from the Employee source.

#### Entity

Create an Employee [Entity](https://knowledge.bigenius-x.com/create-an-entity?hsLang=en) with the wizard from the Employee Stage:

- Business Key = BusinessEntityID
- Relationship to Entity Employee
- Rename the Role to Manager
- Don't map the Foreign Key

Then manually:

- Rename the Alias of the Employee Stage to emp (for Employee)
- Add a second time the Employee Stage as Source:

    - Alias = man (for Manager)
    - Join Operator = Left Outer Join
    - Join Expression =

```
CASE     WHEN emp.OrganizationLevel IS NULL THEN NULL    WHEN emp.OrganizationLevel = 1 THEN '0'    ELSE CONCAT(LEFT(CAST(CAST(emp.OrganizationNode AS hierarchyid) as nvarchar(4000)),         LEN(CAST(CAST(emp.OrganizationNode AS hierarchyid) as nvarchar(4000))) - CHARINDEX('/',         REVERSE(CAST(CAST(emp.OrganizationNode AS hierarchyid) as nvarchar(4000))), 2)),'/')     END   = ISNULL(CAST(CAST(man.OrganizationNode AS hierarchyid) as nvarchar(4000)),'0')
```

#### Use case view

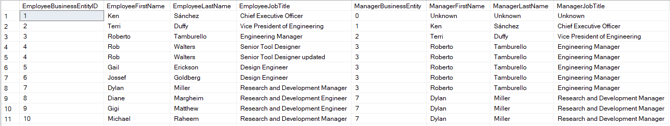

After generating, replacing the placeholders, deploying, and loading the data, the following statement can be executed to have the flattened view of the employee-manager relation:

```
SELECT emp.EmployeeBusinessEntityID,emp.EmployeeFirstName,emp.EmployeeLastName,emp.EmployeeJobTitle,man.EmployeeBusinessEntityID as ManagerBusinessEntity,man.EmployeeFirstName as ManagerFirstName,man.EmployeeLastName as ManagerLastName,man.EmployeeJobTitle as ManagerJobTitleFROM [COR].[COR_EN_Employee] empLEFT JOIN [COR].[COR_EN_Employee] man ON emp.Employee_Manager_SK = man.Employee_SKWHERE emp.EmployeeBusinessEntityID <> 0 --singletonORDER BY emp.EmployeeBusinessEntityID
```

![](https://knowledge.bigenius-x.com/hs-fs/hubfs/image-png-Jan-08-2026-09-51-23-4745-AM.png?width=670&height=127&name=image-png-Jan-08-2026-09-51-23-4745-AM.png)
