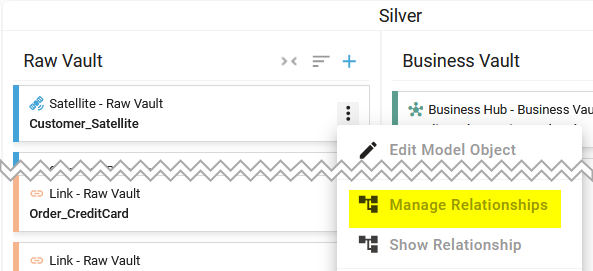

From a Model Object in the Dataflow Modeling overview page, you can access the Relationship overview of the Model Object by choosing the Manage Relationships menu in the Context menu:
You can also access it from the Term Mapping overview of a Model object:
If it is impossible to create a Relationship for a Model Object type (due to a Generator Configuration setting), the menu option and the button will be inactive.

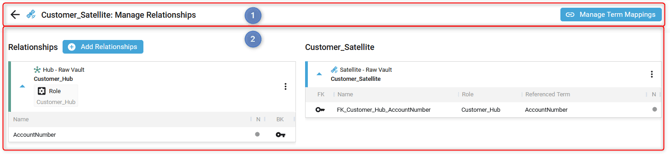

It is made of several areas:
Header
In the Relationship overview header, you can:
- Access the Manage Term Mappings page
Content
In the Relationship overview content, you can:
- Add a Relationship between 2 Model Objects

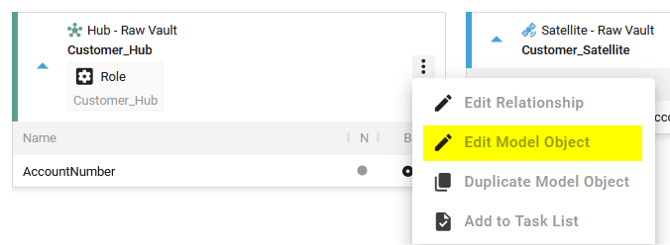

- Edit a Model Object
Then

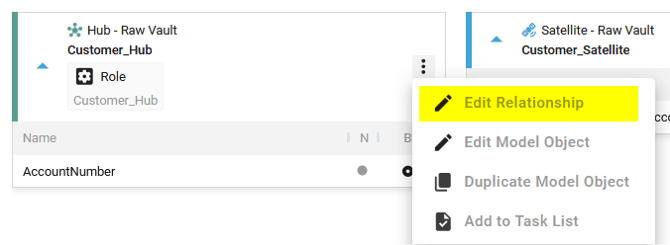

- Edit a Relationship
Then

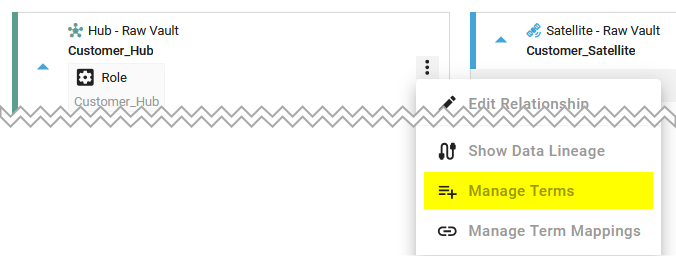

- Manage the Term of the source or target Model Objects of the Relationship

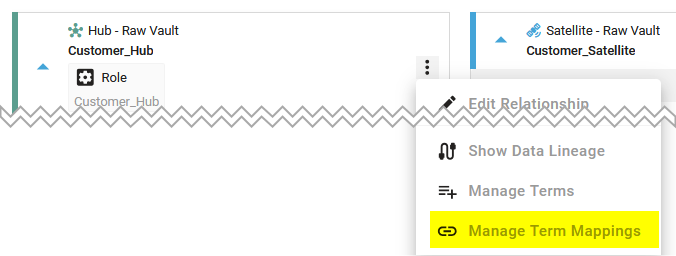

- Manage the Term Mapping of the source or target Model Objects of the Relationship

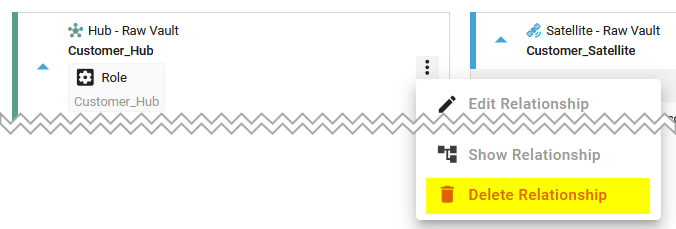

- Delete the Relationship

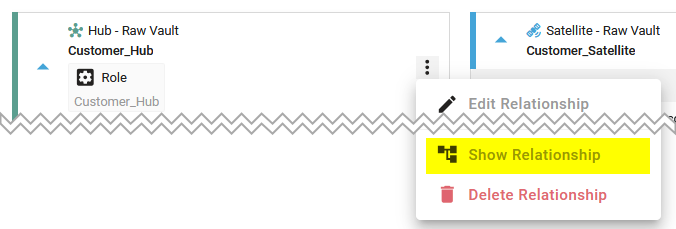

- Show the Relationship diagram of the target Model Object:
A Warning notification is displayed on the concerned Model Object card if a Business Rule is not respected.
Please take a look at Understand warnings and errors.
