Understand documentation template

The Project documentation can be generated on the Generation overview page.

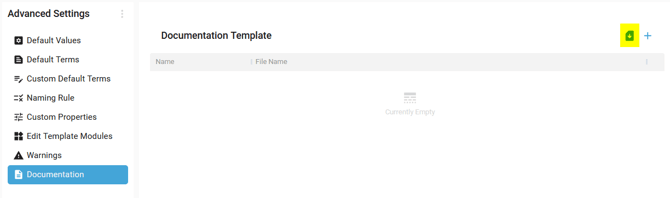

It is generated from the default documentation template available for download in the Advanced Settings overview page, Documentation option in the left menu:

Default documentation template

The template provided by default in biGENIUS-X is composed of five parts:

• A cover page
• A project details section
• A project properties section
• A Source systems section
• A Model Objects section

Cover page

The cover page contains:

• The Project name
• A table of content

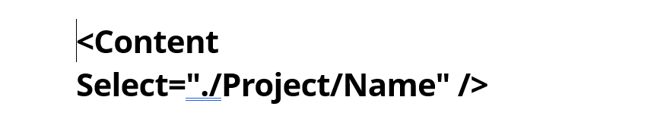

Template:

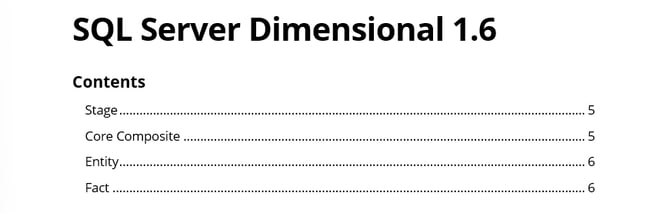

Generated documentation example:

Project details section

The Project details section contains the main information about the Project:

• Description: Project's description
• Configuration: Generator Configuration and Version
• Repository: URL of the git repository containing the Project metadata
• Branch: Branch's name from where the documentation was generated

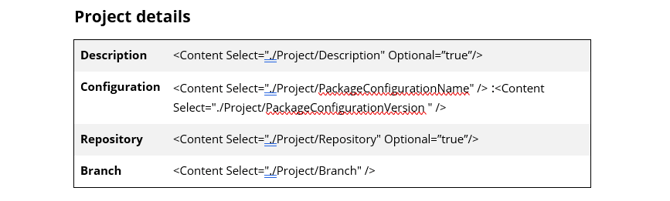

Template:

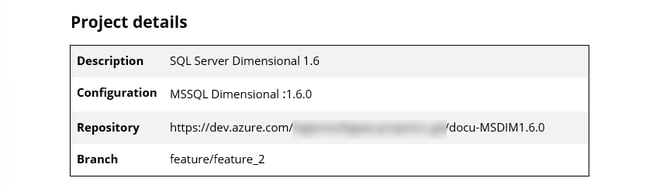

Generated documentation example:

Project Properties section

The Project Properties section contains the Project's Properties values:

• Name: Project's Property name
• Value: Project's Property value

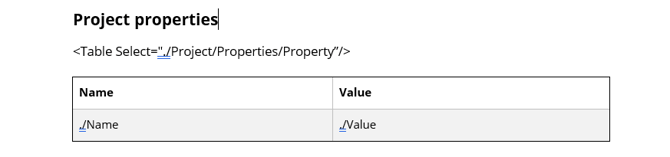

Template:

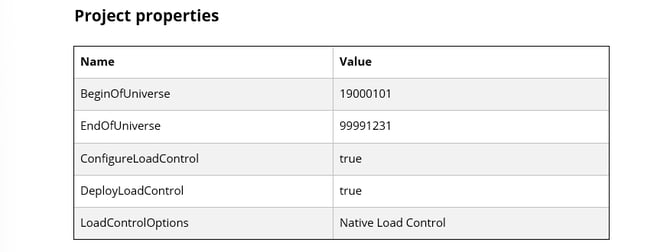

Generated documentation example:

Source Systems section

The Source Systems section contains:

• The Source system's list with:
  • Name: Source System name
  • Type: Source System Type
  • Number of objects: Number of Source Model Objects created from the Source System
• For each Source System, the Source Model Object list with:
  • Name: Source Model Object name
  • Terms: Number of Terms in the Source Model Object
  • Used by: Number of Model Objects using the Source Model Object in their Dataflow Sets

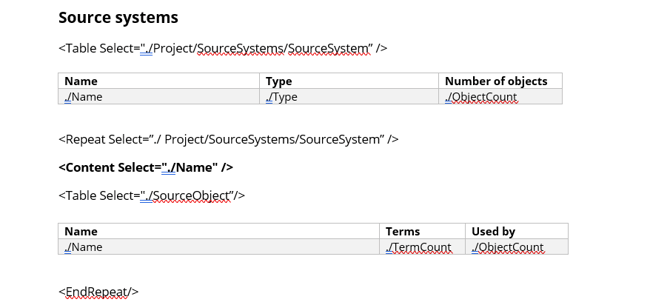

Template:

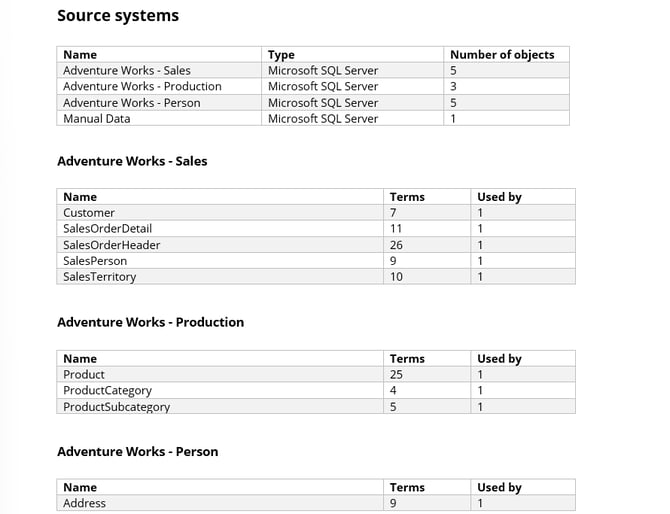

Generated documentation example:

Model Objects section

The Model Objects section contains the Model Object's list grouped by Model Object Type with:

• Name: Model Object name
• Attributes: Number of Business Terms (excluding Business Keys, Foreign Keys, Identity Terms, and Default Terms)
• BKs: Number of Terms set as Business Key
• Dataflows: Number of Dataflows
• Rel. to: Number of Relationships to the Model Object
• Rel. from: Number of Relationships from the Model Object

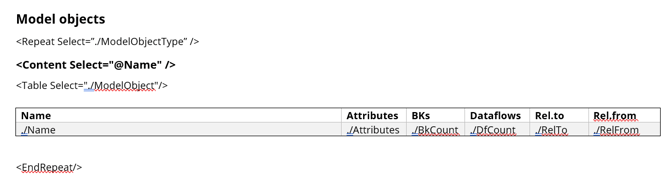

Template:

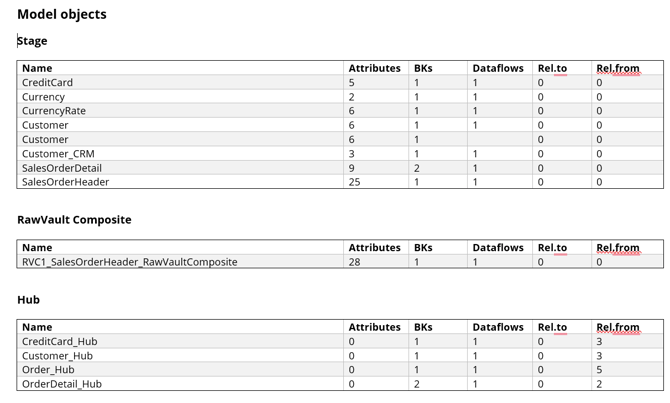

Generated documentation example:

Custom documentation template

It is possible to customize the default documentation template to adapt it to your needs as for:

• Adding your company logo
• Adding some text
• Adding other available data in the template: the data lineage diagram can be added

Add the data lineage diagram

The data lineage diagram can be added in a custom template by adding the following template code:

<ImageContent Select="./DataLineageImage" />

You can download here a template including the data lineage diagram.
