For a dedicated Project in a Solution, you can access the Branch overview by clicking:

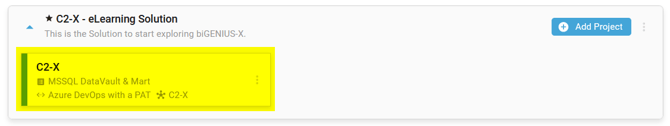

- On the Project in the Solutions and Projects overview:
- On the Branch Overview menu in the navigation bar, if you are already inside a Project's Branch:

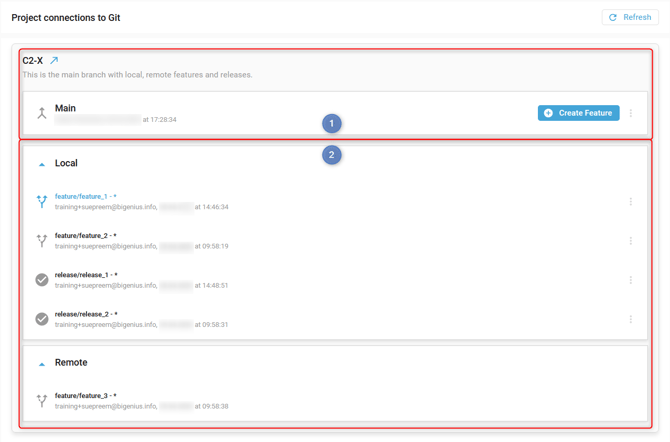

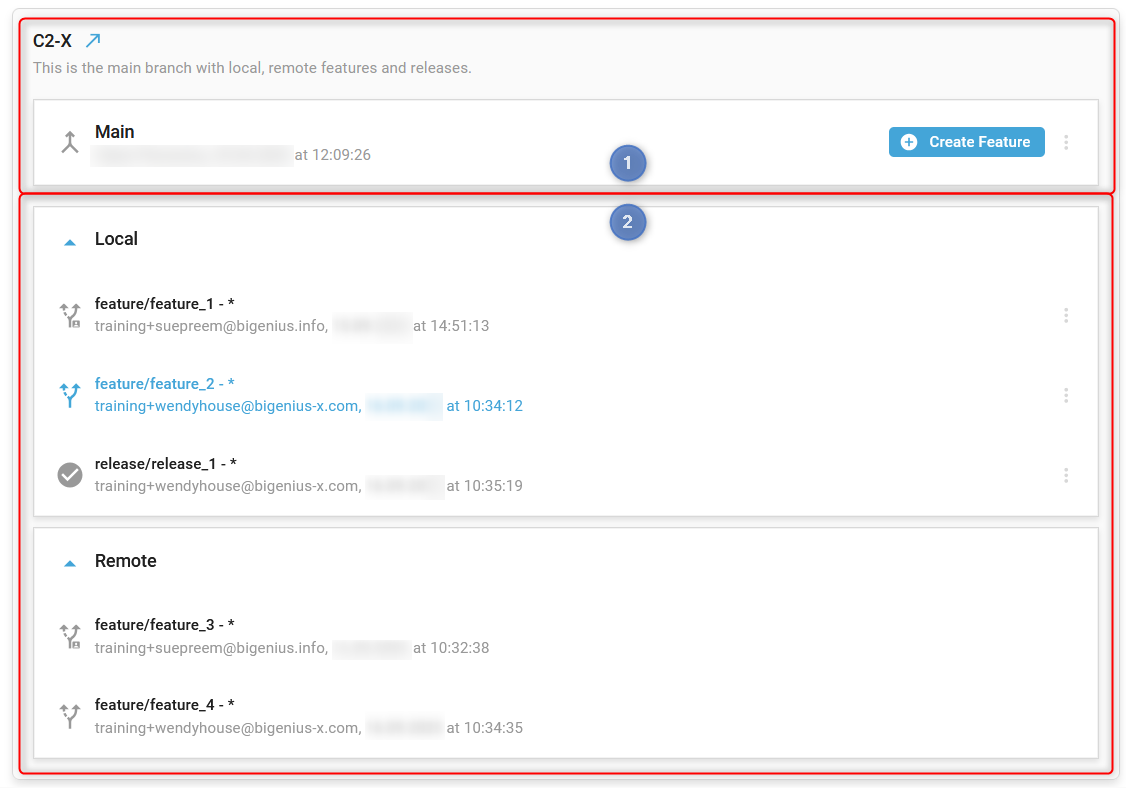

It is made up of several areas:
The User can see:
- His local Feature Branches: he can start modeling them

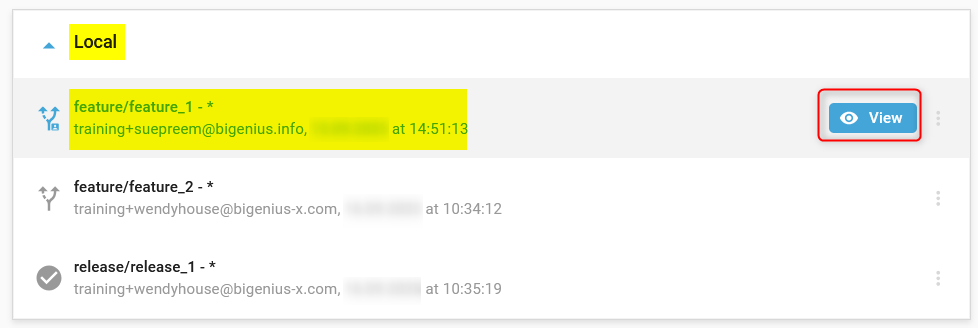

- The local Feature Branches from other users he checked out: he can only view the content

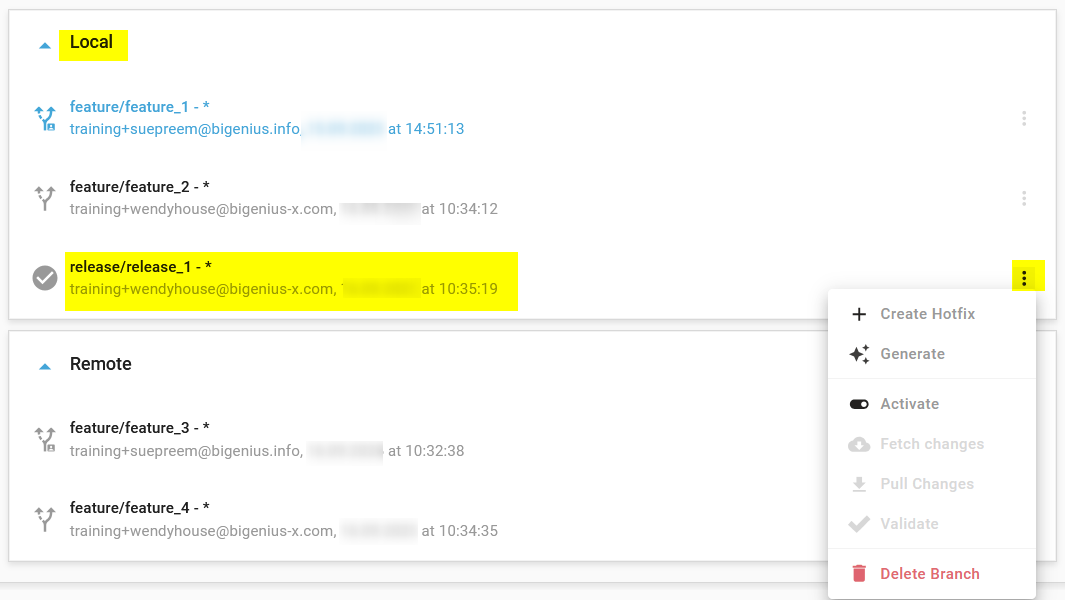

- All the Local Release Branches: from him and from all the other users: he can only create a Hotfix or generate it:

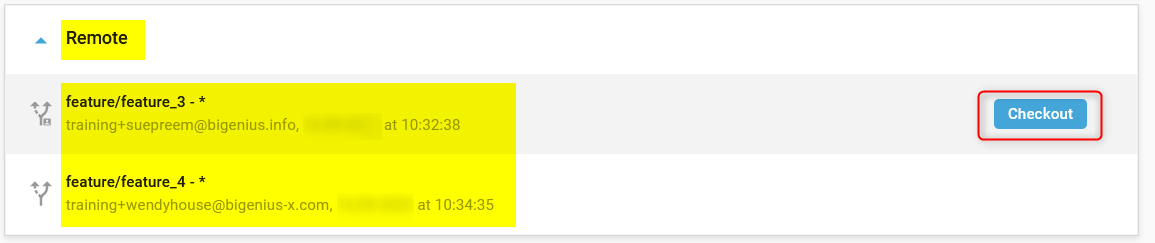

- All the remote Branches: from him and from all the other users: he can check them out:
More details about the Git Workflow used in biGENIUS-X are here.
Header
In the Branch overview header, you can:
- Open the metadata repository URL of the Project
- Refresh the Branches list:

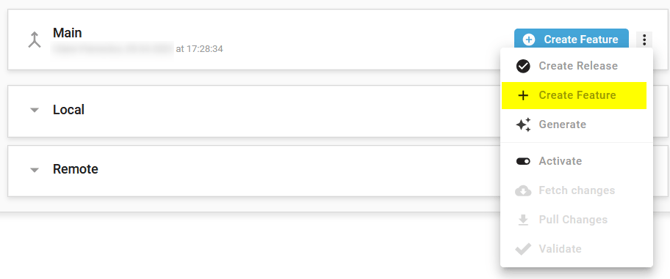

- Create a Feature Branch:
or

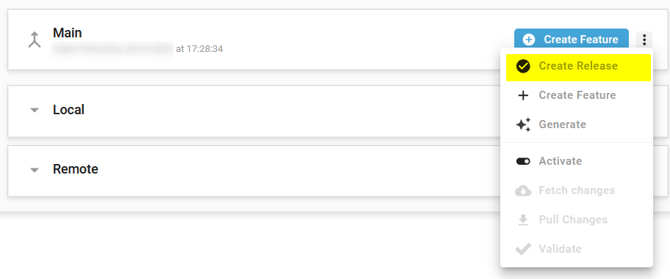

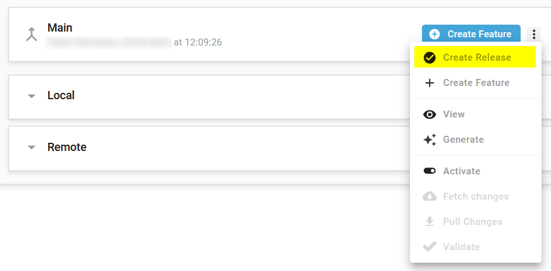

- Create a Release Branch from the Local Main Branch:

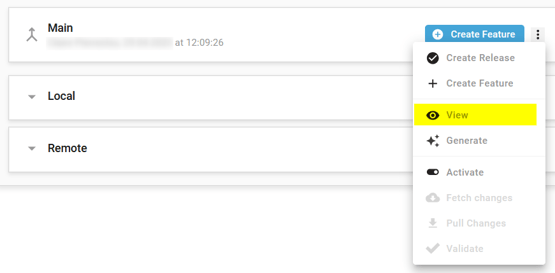

- View the Local Main Branch:

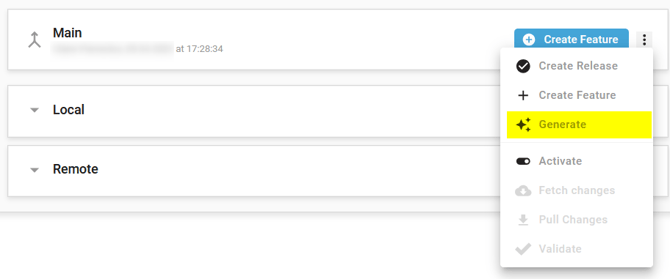

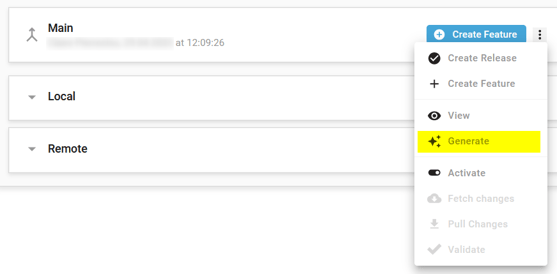

- Generate the Local Main Branch:

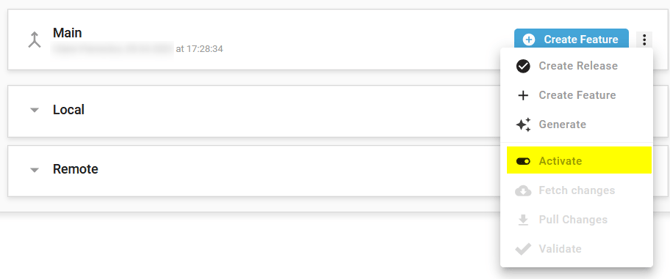

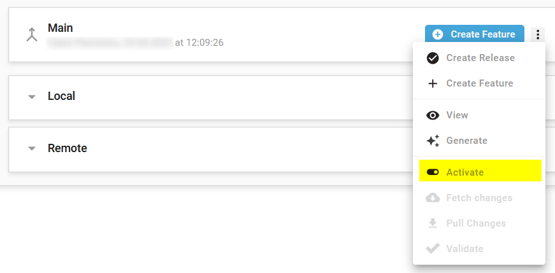

- Activate the Local Main Branch:

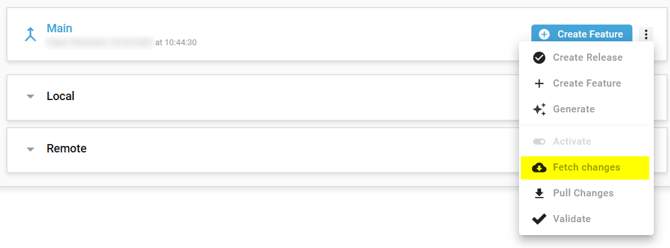

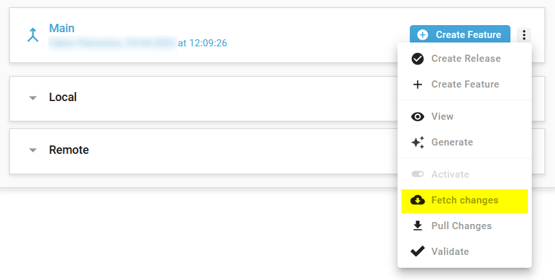

- Fetch changes from the Remote Main Branch to the Local Main Branch: The branch should be activated first

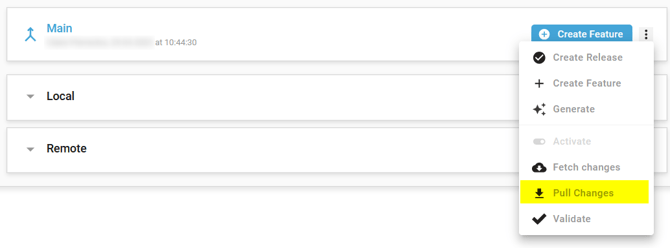

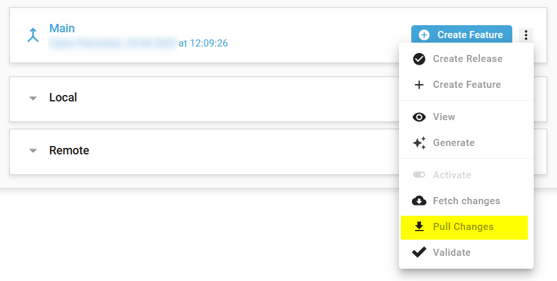

- Pull the changes from the Remote Main Branch to the Local Main Branch: The branch should be activated first

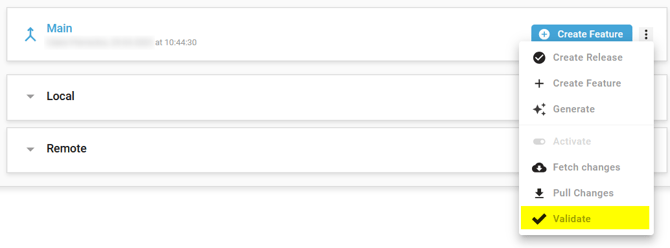

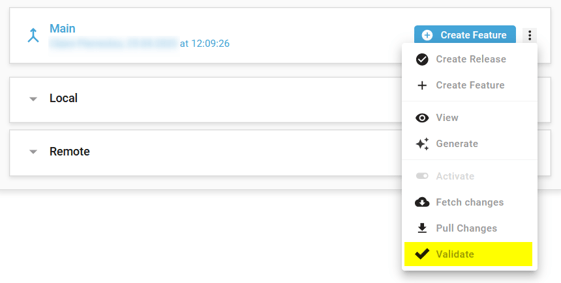

- Validate the Local Main Branch: The branch should be activated first
Content
The Branch overview content displays:
- Your Local Branches: Feature and Release Branches
- All the Remote Branches: Feature, Release, and Hotfix Branches
Local Branches
For a Local Branch, you can:

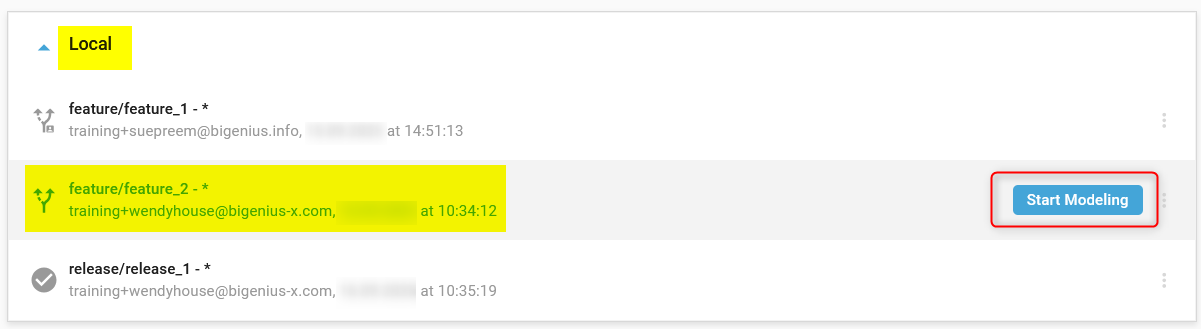

- Start Modeling in a Branch:

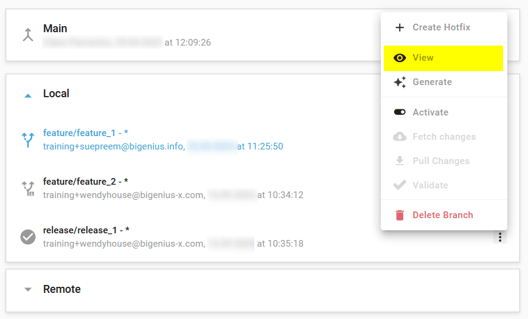

- View a Branch:
- View a Release Local Branch:

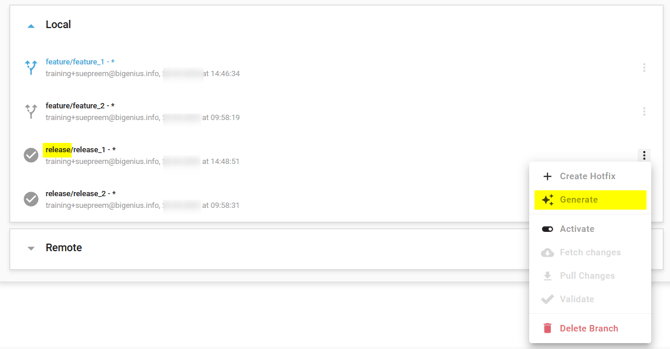

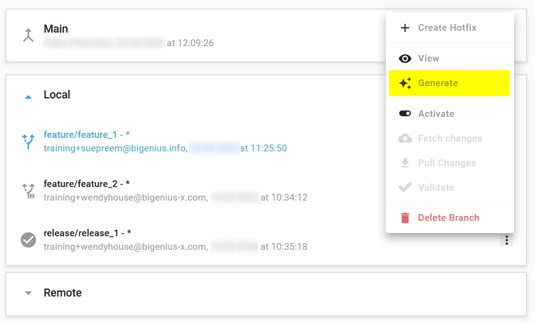

- Generate a Release Local Branch:

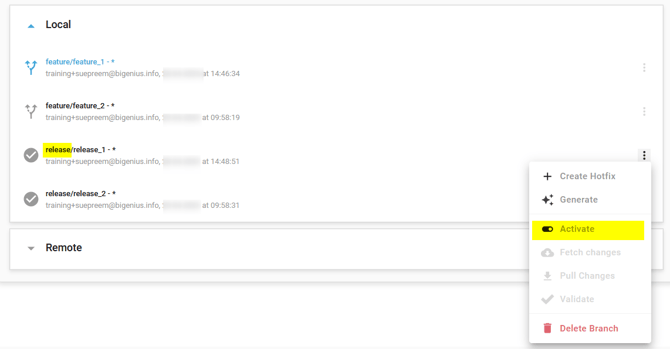

- Activate a Feature or Release Branch:

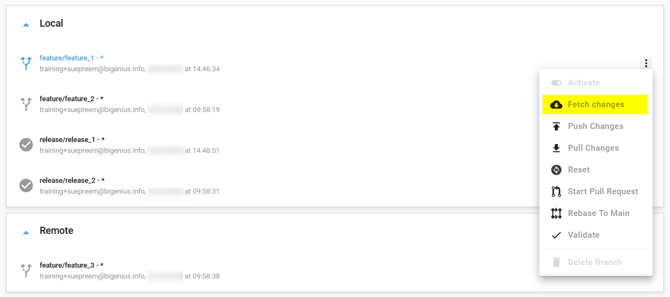

- Fetch the changes from the Remote Branch to the local Feature or Release Branch: The branch should be activated first

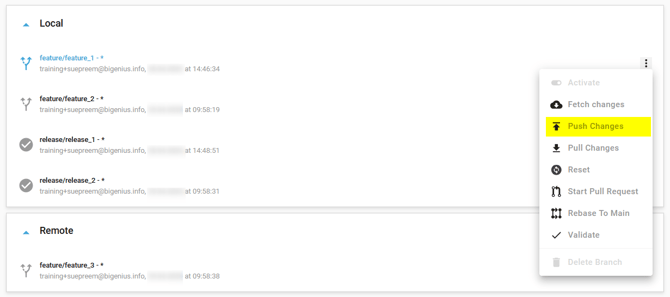

- Push the changes of a local Feature Branch to the Remote one: The branch should be activated first

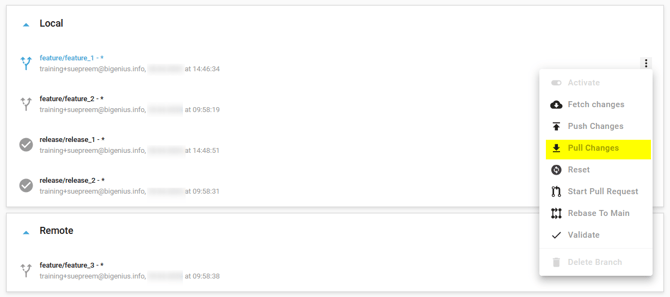

- Pull the changes from the Remote Branch to the local Feature or Release Branch: The branch should be activated firstF

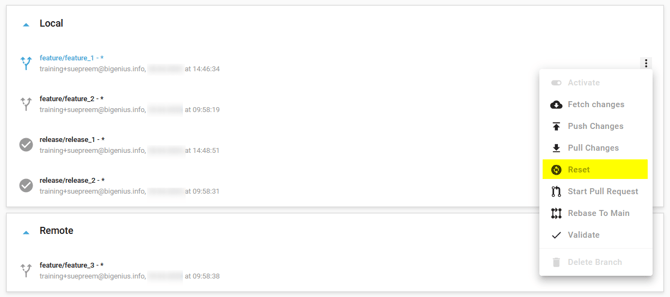

- Reset some changes for a local Feature Branch:

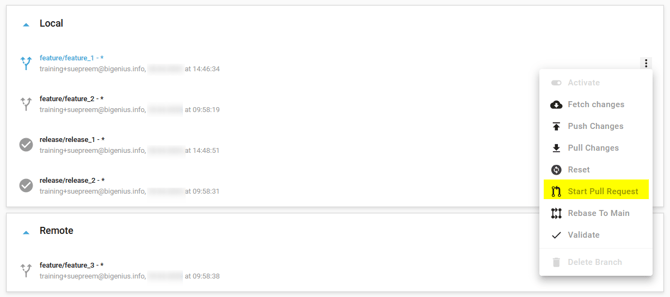

- Start a Pull Request for a local Feature Branch: it opens the Metadata repository URL set for the Project (See Create a Project):

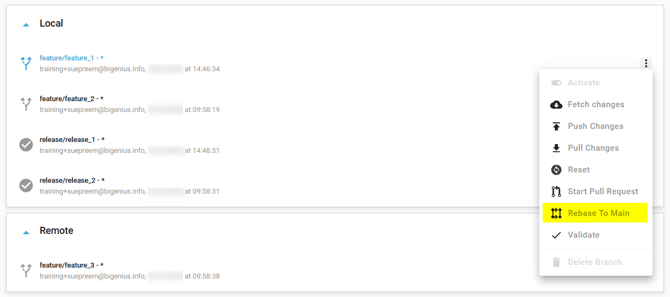

- Rebase a local Feature Branch to the Main Branch:

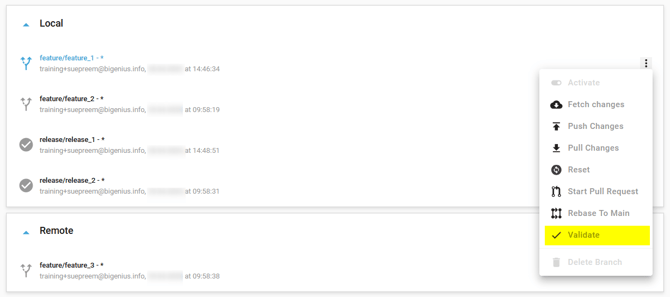

- Validate a Feature or Release Branch: The branch should be activated first

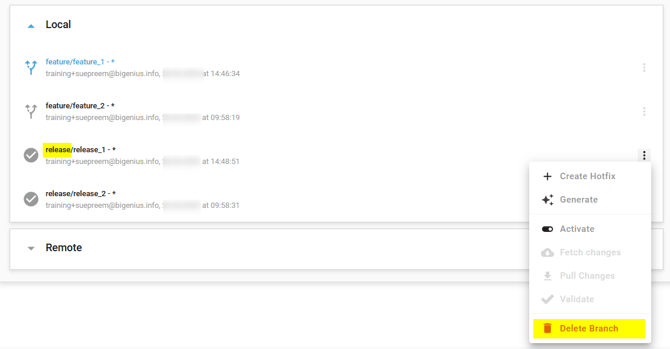

- Delete a local Feature or Release Branch:

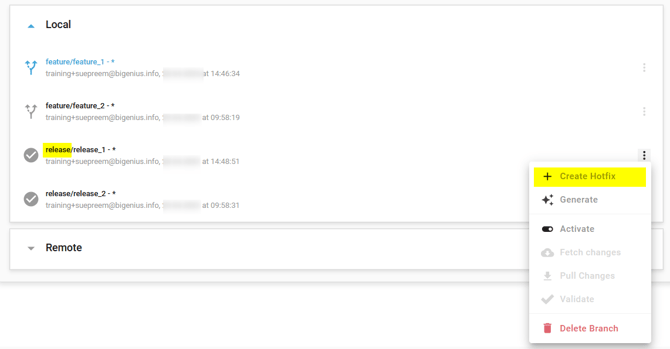

- Create a Hotfix Branch from a Release Branch: The branch should be activated first
Remote Branches
For a Remote Branch, you can:
