Snowflake - Load data - Native Load Control - 1.8

Before loading the data from your Source(s) System(s) to your Snowflake Target System, please:

• Deploy the generated Artifacts

You are now ready to load the data.

There are three possibilities to load the data natively with Snowflake:

• Sequentially based on Snowflake Tasks (with or without a schedule)
• With a near real-time approach with Snowflake Dynamic Tables and Stream
• With a stage-driven approach based on 1 Snowflake Task per Stage Model Object

With both approaches, you can load linked Project data in an overall load.

You can also load the data with an external tool as:

• Apache Airflow

Load the data sequentially

With a schedule

To load the data:

• Open Snowflake
• Open the Worksheet XXXXX_tasks_helper.sql. It contains 5 parts:
  1. Enable all tasks: Load the data with a schedule
  2. Which is the DAG that is currently scheduled or is executing?: Monitor the current execution
  3. Returns the history of a DAG or task: Monitor all the executions
  4. Show logging events for the loaders: Display the logging events
  5. After the test execute the following script to ensure that no additional costs occur: Suspend the root Task
• To launch the data load with a schedule every X minutes:

  • Select the seventh line of Part 1 and execute it:  the root task and all the dependent tasks to load the data are launched:

CALL SYSTEM$TASK_DEPENDENTS_ENABLE('LOAD_XXXXXX_ROOT_TASK');

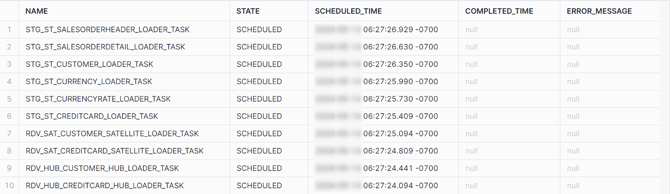

• You can monitor the current load execution with Part 2. For example, just after the load data launch, you will have only the root task scheduled:

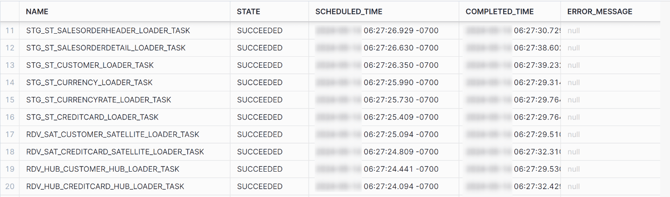

• After the completion of the load, the root task and all the child tasks will be completed. You can check then with the Part 3:

• After the load has been completed, if using a schedule every X minutes, please suspend the root task to avoid additional costs in Snowflake execution. To do this, execute Part 5.

Without a schedule

• Open Snowflake

• Execute the following code:

--Identify the root task name: LOAD_XXXXXX_ROOT_TASK
SHOW TASKS;

--Update LOAD_XXXXXX_ROOT_TASK by the root task name in the following code:
--Update <warehouse> by the warehouse name

--Unset the default schedule
ALTER TASK LOAD_XXXXXX_ROOT_TASK UNSET SCHEDULE;

--Use the AFTER clause to make it a child task temporarily:
CREATE OR REPLACE TASK TEMP_PARENT_TASK WAREHOUSE = '<warehouse>' AS SELECT 1;
ALTER TASK LOAD_XXXXXX_ROOT_TASK ADD AFTER TEMP_PARENT_TASK;
SELECT SYSTEM$TASK_DEPENDENTS_ENABLE('LOAD_XXXXXX_ROOT_TASK');
ALTER TASK LOAD_XXXXXX_ROOT_TASK REMOVE AFTER TEMP_PARENT_TASK;
DROP TASK TEMP_PARENT_TASK;

--Launch the data load
EXECUTE TASK LOAD_XXXXXX_ROOT_TASK;

• You can also monitor the current load execution with Part 2 of the Worksheet XXXXX_tasks_helper.sql. See the previous chapter "With a schedule".
• After the completion of the load, the root task and all the child tasks will be completed. You also can check then with the Part 3 of the Worksheet XXXXX_tasks_helper.sql. See the previous chapter "With a schedule".

Load the data in near real-time with Stream

All your Model Objects should have the Property Use Stream checked to use a Stream approach.

To load the data:

• Open Snowflake

• The generated artifacts don't include helpers to load data with Stream. Please download the Helper_Snowflake_Stream.sql and upload it as Worksheet in Snowflake.

• Open the Worksheet Helper_Snowflake. It contains 5 parts:
  1. Generate the SQL code to resume the stream tasks
  2. Load the data
  3. Monitor the execution
  4. Generate the SQL code to suspend the stream tasks
  5. Suspend the root Task
• Select the 3 lines of Part 1 and execute them: the list of SQL statements to resume all the tasks is generated.
• Copy the generated SQL statements in Part 2
• Select the X lines of Part 2 and execute them: the tasks to load the data are launched

• You can monitor the load execution with Part 3. For example, just after the load data launch, you will have all the tasks scheduled:

• After the completion of the load, all the tasks will be completed:


• After the completion of the load, in testing mode, please suspend all the tasks to avoid additional costs in Snowflake execution. To do this:
  •  Select the 3 lines of Part 4 and execute them: the list of SQL statements to suspend all the tasks is generated
  • Copy the generated SQL statements in Part 5

• • Execute Part 5

Load the data with a stage-driven approach

To load the data:

• Open Snowflake

• The generated artifacts don't include helpers to load data with a stage-driven approach. Please download the Helper_Snowflake_Stage_Driven.sql and upload it as Worksheet in Snowflake.

• Open the Worksheet Helper_Snowflake_Stage_Driven. It contains 5 parts:
  1. Generate the SQL code to resume 1 or several the stage-driven task
  2. Load the data
  3. Monitor the execution
  4. Generate the SQL code to suspend the tasks
  5. Suspend the root Task
• Select the 3 lines of Part 1 and execute them: the list of SQL statements to resume all the tasks is generated.
• Copy 1 or several generated SQL statement for stage-driven tasks in Part 2
• Select the X lines of Part 2 and execute them: the tasks to load the data are launched

• You can monitor the load execution with Part 3. For example, just after the load data launch, you will have all the tasks scheduled (only 1 stage load plan in this example):

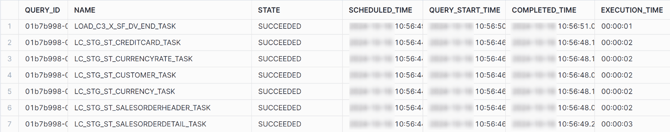

• After the completion of the load, all the tasks will be completed and the next one scheduled:


• After the completion of the load, in testing mode, please suspend all the tasks to avoid additional costs in Snowflake execution. To do this:
  •  Select the 3 lines of Part 4 and execute them: the list of SQL statements to suspend all the tasks is generated
  • Copy the generated SQL statements in Part 5

• • Execute Part 5

Check the data

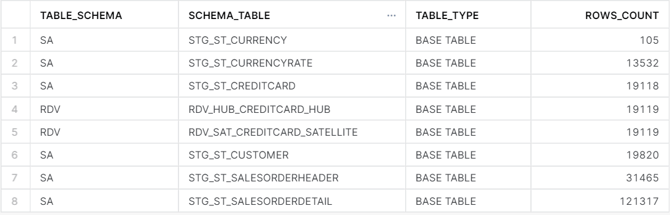

You can now check that your data were correctly loaded with the following script:

USE DATABASE IDENTIFIER('<Name of your target database>');

SELECT table_schema AS table_schema
, table_name AS schema_table
, table_type AS table_type
, row_count AS rows_count
FROM information_schema.tables
WHERE table_type = 'BASE TABLE'
AND table_schema IN ('SA','RDV','BV','DM')
ORDER BY row_count;

Load several linked Projects data

As you read in the previous chapters, to load data in for a Snowflake Project, you need to execute the corresponding root task.

To load several linked projects, we will create a new root task that executes the root tasks of all Projects.

In the following example, Project B (ex.: Dimensional Project) uses Project A (ex.: Stage File Project) as a Linked Project.

--Identify the 2 root task names: LOAD_XXXXXX_ROOT_TASK

SHOW TASKS;

-- Update LOAD_XXXXXX_ROOT_TASK_1 by the root task name for the Project A
-- Update LOAD_XXXXXX_ROOT_TASK_2 by the root task name for the Project A
-- Update <warehouse> by the warehouse name

--Create the task to load all the projects

CREATE OR REPLACE TASK LOAD_C4_X_SF_OVERALL_ROOT_TASK
   WAREHOUSE = <warehouse>
AS
BEGIN
               EXECUTE TASK LOAD_XXXXXX_ROOT_TASK_1;
-- Wait 30 seconds to be sure the first root task is ended
-- Adapt to more seconds if necessary
               CALL SYSTEM$WAIT(30);
               EXECUTE TASK LOAD_XXXXXX_ROOT_TASK_2;
END;

--Execute the overall load
EXECUTE TASK LOAD_C4_X_SF_OVERALL_ROOT_TASK;
