Replace a Dataflow Set Model Object
Replace a Model Object into a Dataflow Set

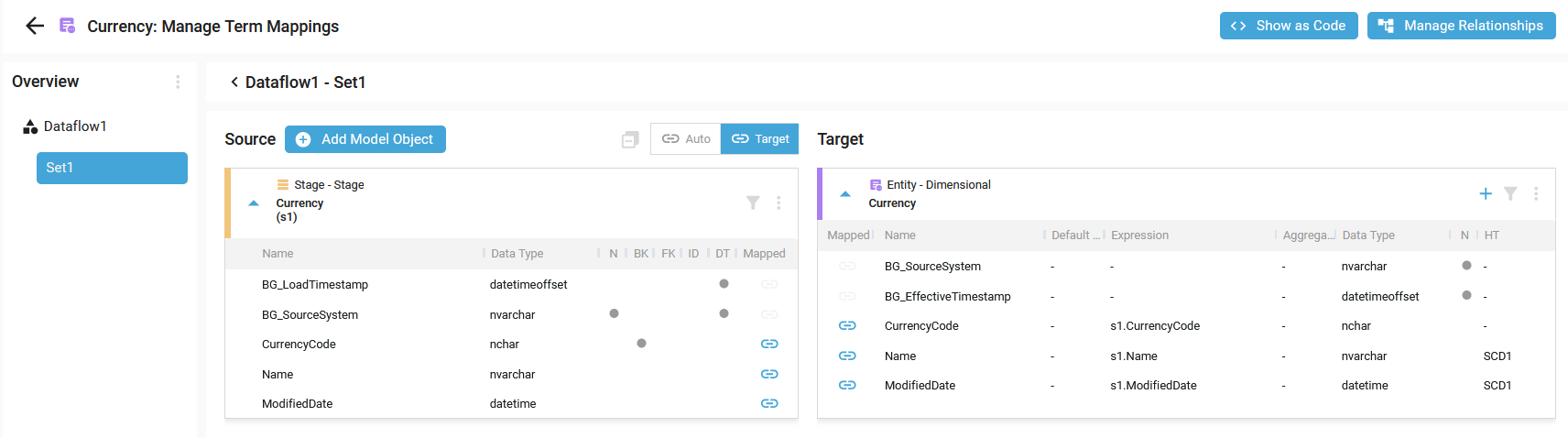

To replace a Model Object into a Dataflow Set by another Model Object, access the Term Mapping overview page for a Model Object:

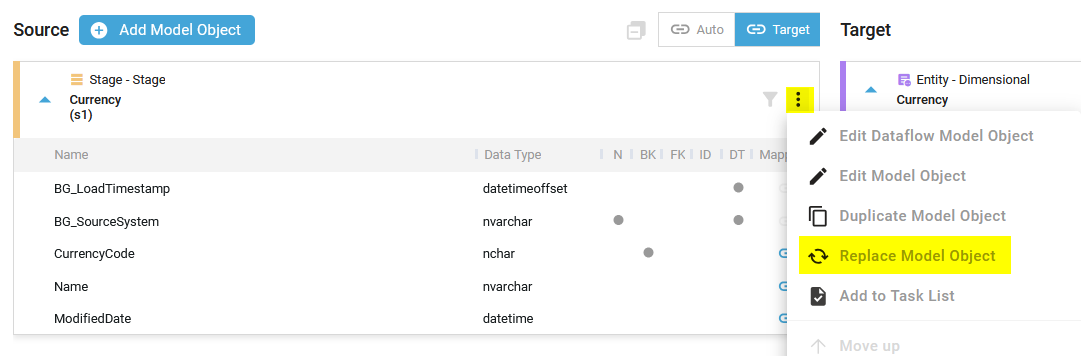

Then click on the Context menu of the Dataflow Set Model Object to replace and select the Replace Model Object option:

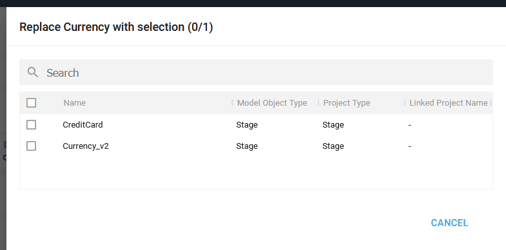

A side panel opens with the list of possible Model Objects:
Hint: You can replace a Model Object into the Dataflow Set of a Model Object depending on the Semantic configuration of the generator.
In this example, you can add Model Objects of types Stage in the Dataflow Set of a Model Object of type Entity.

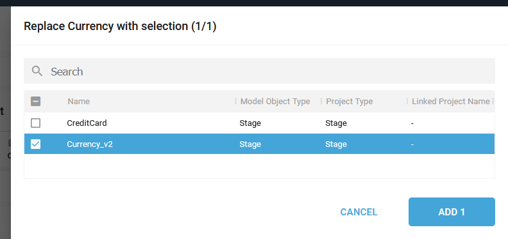

Select a new Model Object:
Click on the ADD button:
-

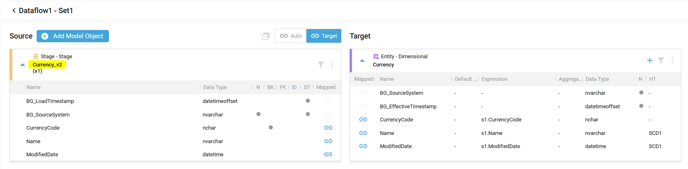

The Dataflow Set Model Object was replaced by the selected one:
- The mapping were kept and transferred to the new Model Object if possible:
-
If the Terms of the original Model Objects are also available in the new Dataflow Model Object, they are automatically mapped.
-
The alias, Join Rule, and Join Expression (if the Term name exists in the new Model Object) are also copied.
-
- A notification confirms the correct replacement:
Demonstration video
