      Monitor Load Control

      Monitor Load Control

      Monitoring the Load Control means controlling and logging the results of a load.

      You can:

      • Check the status of the current execution
      • Check the status of all the executions

      Please find more details about Load Control execution plans here: Plan Load Control.

      All the details concerning the monitoring for each target technology can be found here: Load data with a native load control.

      Example

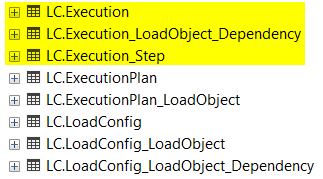

      For example, in a Microsoft SQL Server Generator with a native Load Control, the executions are stored in the following tables:

      • Execution: the execution (load) itself is identified by an ID that will be used in the other tables
      • Execution_LoadObject_Dependency: the dependencies between the Load Objects added in the execution plan
      • Execution_Step: the steps of the execution according to the execution plan

      Check the status of the current execution

      To check the logs of the current/last execution, execute the following code:

      --The execution plan name must be the same as in the Plan Load Control step
      EXEC [LC].[Show_Execution]                        @ExecutionPlan = N'DEV_XXXXX';

      This shows a list of all execution steps. The execution status is as follows:

      • Finished: The loader has been executed or deactivated
      • Running: The loader is currently executed
      • Waiting: The loader is waiting to be executed

      Check the status of all the executions

      A monitoring can be created based on the logging tables.

      Some views are available to check all the executions:

      --All the executions with all the steps detailed
      SELECT * FROM [LC].[Execution_All]

      --All the executions detailed by parts
      SELECT * FROM [LC].[ExecutionMonitor_All]
