      Import a Project to be used as a Linked Project

      Import a Project

      To import a Project to be used as a Linked Project in a Project, access the Source Systems overview page for a Project Branch:

      Click on the LINKED PROJECTS tab:

      Then click on the Import button:

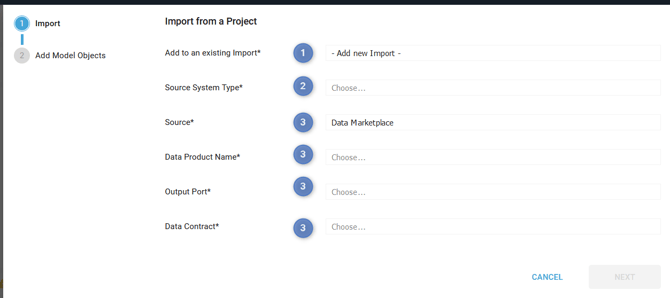

      The Import from a Project side panel window is opened. It is composed of 2 steps: Import, then Add Model Objects:

      Fill in the following information:

      1.  Add to an existing Import: 2 possibilities:

        1. Add an Import in a new Linked Project :

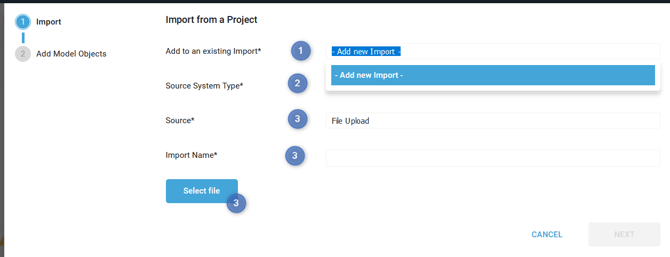

          Select the entry "-Add new Import-" in the Import list:

          Then fill:

          1. Source System Type

          2. Import Name

        2. Add Import for an existing Linked Project:
          Select the Import in the Import list:

      2. Select File: select the Project File (YAML) in your local system.

      If you do not select a valid file type or a file that is not well-formed, the following error message will appear: The Discovery file is not compatible.

      You can't import a file which was exported with a superior version than the Generator used in your project. If it is the case, the following error message will appear: File is from a newer generator version, please update your project to...

      Then click on the NEXT button.

      The Add Model Objects step is displayed in the side panel window. See Create Linked Model Objects from a Linked Project.

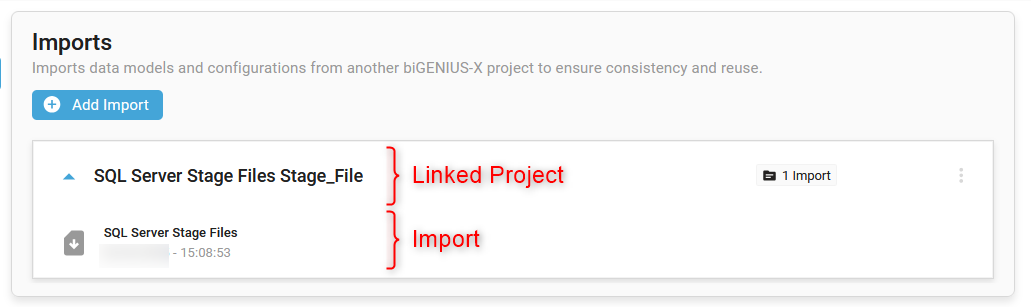

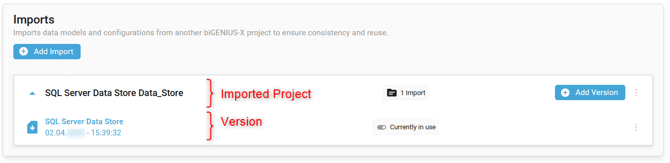

      The Import appears in the Linked Projects list:

      A notification confirms the correct import:

      Demonstration video
