      Duplicate a Model Object

      Duplicate a Model Object

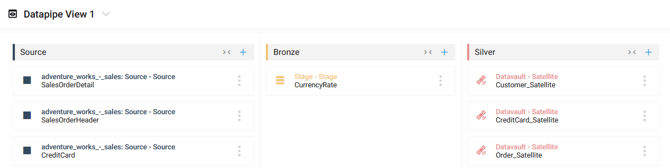

      To duplicate a Model Object, access the Dataflow Modeling overview page:

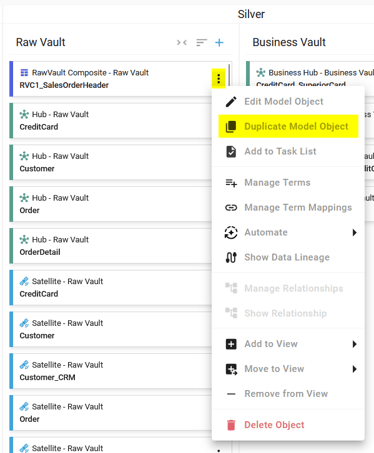

      Click on the Context menu for a Model Object and choose the option Duplicate Model Object from the menu:

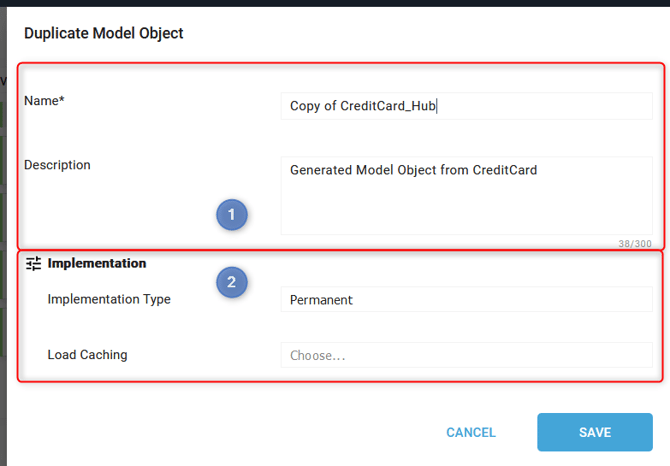

      The Duplicate Model Object side panel window opens:

      The following information is copied from the original Model Object:

      • Name: "Copy of <Name of the original Model Object>"
      • Description
      • Properties
      • Terms
      • Term mappings
      • Relationships
      • Dataflows
      • Dataflow sets

      You can modify the following information duplicated from the original Model Object:

      1. The Model Object Main Properties: Name and Description
      2. The Model Object Properties: These depend on the Generator Configuration. In this example, 2 Properties are available for a Hub Model Object

      Click on the SAVE button.

      A notification confirms the succesful update:

      Demonstration video
