Databricks - Load data - Native Load Control

Before loading the data from your Source(s) System(s) to your Databricks Target System, please:

You are now ready to load the data.

To load the data natively with Databricks Unity Catalog, you will use a multi-thread approach to load them in parallel.

You can also load the data with an external tool as:

We will explain how to load the data using the possible target environment: Databricks.

To load the data:

Open Databricks with the URL provided in the Azure Databricks Service resource:
Databricks is open:
Click on the Workspace menu on the left-hand side:
Expand the folders Workspace > Users > Your_user > artifacts:
Open the 500_Deploy_and_Load_Databricks.ipynb file, which contains four steps:
1. %run ./LoadControl/XXX_Deployment_LoadControl: Deploy the load control structure
2. %run ./Jupyter/XXX_Deployment.: Deploy the code
3. %run ./LoadControl/XXXX_MultiThreadingLoadExecution.ipynb: Load the data with multiple threads
4. %run ./XXX_SelectResults.ipynb: Display the results

Select the Compute Cluster (Demo Cluster in our example)
Execute step 3, then step 4
The data were loaded:

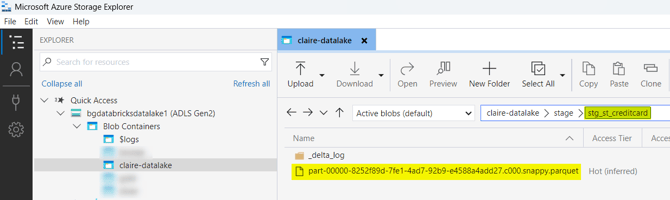

- You should have the target Parquet files created for each Target Model Object, for example, for the Stage CreditCard:
- Step 4 displayed a resume of the number of rows loaded for each Target Model Object, for example:

You can now check that your data was correctly loaded with the following script:

%sql
select * from `rawvault`.`rdv_hub_creditcard_hub`;

And see the content of your Target Parquet file:

Databricks - Load data - Native Load Control - 1.9
